From Isolated Reactions to Condensed phase Chemical Reactions

Nowadays, we can easily obtain such information as the geometric structures and potential energy surfaces in isolated reaction systems. On the other hand, in condensed phase chemical reaction systems such as solution, it is quite difficult to clearly define such microscopic features since not only solute molecules but also a vast number of the solvent molecules around them are related in the chemical reactions. Under this circumstance, we have proposed the "free energy gradient (FEG) method" as one of the theoretical methods to uniquely determine the equilibrium structure in solution and to clarify the solvation structures and dynamics of the solute molecules in condensed phase chemical reaction systems, and applied it to various ones.



Theoretical study on glycine isomerization reaction in aqueous solution

Glycine molecule is the smallest amino acid. Its zwitterion (ZW) does not exist stably since it is a nonionic molecule in gas phase. On the other hand, it is known that the neutral (NF) and ZW glycine molecules coexist in aqueous solution. With the FEG method, we have reproduced quantitatively the isomerization reaction in aqueous solution, and obtained the optimized structures in both stable and transition states. Figure 1 shows the free energy profile of the glycine isomerization reaction by the FEG method (horizontal axis is intrinsic reaction coordinate). In aqueous solution, the glycine molecule that exists in the NF (left balloon) in gas phase became stable as the ZW (right balloon), and the clear transition state (middle balloon) was observed between NF and ZW. In addition, the NF glycine was found to take eight stable conformers, and we have comprehensively investigated the relative stability between these conformers. As a result, it was shown that the free energy landscape in aqueous solution becomes rather flat in comparison with that in gas phase due to the offsets between the stabilization from the solute-solvent electrostatic interactions and the potential energy destabilization of the solute molecule itself.

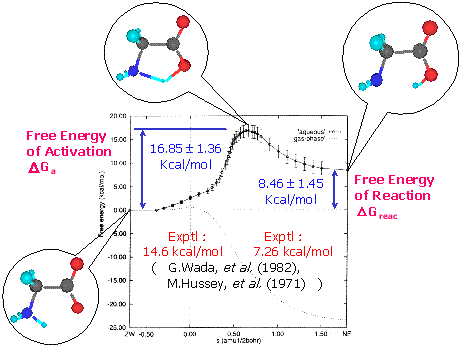

Figure 1. Energy profile of glycine isomerization reaction

[Reference]

N. Okuyama-Yoshida, K. Kataoka, M. Nagaoka and T. Yamabe, J. Chem. Phys., 113, 3519 (2000).

N. Takenaka, Y. Kitamura, Y. Koyano, T. Asada and M.Nagaoka, Theor. Chem. Acc., 130, 215 (2011).

Y. Kitamura, N. Takenaka, Y.Koyano and M. Nagaoka, Chem. Phys. Lett., 514, 261 (2011).


Theoretical study on ammonia ionization reaction in aqueous solution

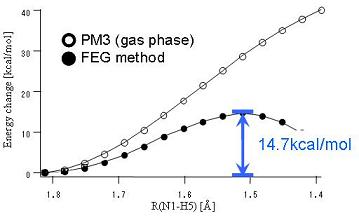

Fig.2 Energy profile of ammonia ionization reaction

Ammonia easily liquefies under high pressure and has high solubility in water. We have executed the solute geometrical optimizations by FEG method, and obtained the free energy profile of the ionization reaction in aqueous solution. As shown in Figure 2, the solute potential energy was destabilized in the gas phase (○) as its reaction proceeds and the transition state (TS) structure does not exist while a clear TS structure was seen on the reaction path in aqueous solution (●).

The calculated value of activation for ionization (14.7 kcal/mol) was found to be slightly over the experimental one (9.57 kcal/mol).

[Reference]

M. Nagaoka, Y. Nagae, Y. Koyano, Y. Oishi and M. Nagaoka, J. Phys. Chem. A, 110, 4555 (2006).

Y. Koyano, N. Takenaka, Y. Nakagawa, M. Nagaoka, Bull. Chem. Soc. Japan, 83, 486 (2010).


Development of theoretical methodology to interpret vibrational spectra

In addition to structural information (i.e., stable structures, intermediates and transition ones), the state of motion is very useful to understand the chemical reactions. The vibrational frequency analysis (VFA) has been implemented in the quantum chemistry calculation packages, such as GAUSSIAN, as a common theoretical technique, due to not only the comparison with the experimental vibrational spectrum but the properties of undergoing a chemical reaction, i.e., the equilibrium constant and reaction rate. However, the vibrational motions of the chemical species in condensed phase are complicated by interactions with the surrounding solvent molecule in comparison those in gas phase.

We have proposed the dual approach to vibrational spectra (dual VFA approach) as approximate methodology to effectively estimate how the molecular vibrates in condensed phase, and investigated the influence of microscopic solvent effects (such as the hydrogen bonding) on vibrational spectra. Figure 3 represents the IR spectra of a water molecule in liquid.

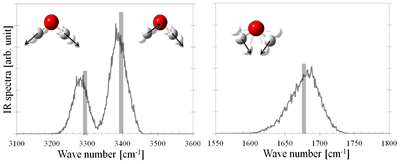

Figure 3. IR spectra of water molecules in liquid water

[Reference]

H. C. Georg, T. S. Fernandes, S. Canuto, N. Takenaka, Y. Kitamura, M. Nagaoka, In Practical Aspects of Computational Chemistry III; J. Leszczynski, M. K. Shukla, Eds.; Springer; New York, USA, 2014.

Y. Kitamura, N. Takenaka, Y. Koyano, M. Nagaoka, J. Chem. Theor. Comp., 10(8) 3369 (2014).


Theoretical study on associated states of methyllithium

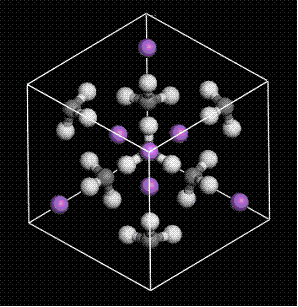

Figure 4. Two units of tetrameric methyllithium (MeLi) crystal structure per unit cell
(gray: carbon, white: hydrogen, purple: lithium; space group: I-43m)


Alkyllithium (RLi) is an organometallic compound which plays a quite important role as a nucreophilic reagent in organic chemistry in synthesis because it is a strong base. The crystal of methyllithium (MeLi), which is one of RLis, exists as the body-centered cubic lattice of tetrameric aggregation (each methyl group forms the staggered conformation for each Li atom (see Fig. 4)).

On one hand, the structure of the isolated MeLi in gas phase has been interpreted variously by both theoretical and experimental approaches (in contrast to MeLi crystal, each methyl group forms the eclipsed conformation for each Li atom (see Fig. 5)).

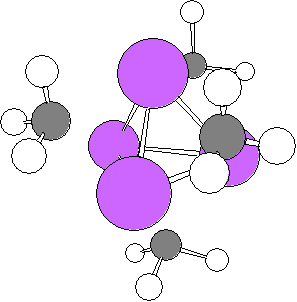

Figure 5. Isolated tetrameric MeLi structure in gas phase (point group: Td).


On the other hand, MeLi in organic solution exists as tetramer (in THF) or as the chemical equilibrium state between tetramer and dimer (in diethyl ether) yet these aggregations have not been identified. And those associated states have not been yet investigated in detail either.

With the computational chemical approach such as molecular orbital calculation, we have already clarified the origin of the conformational characteristics of the methyl group between the isolated MeLi and MeLi crystal which was experimentally observed before. And in this study, considering those results, we try to determine the MeLi associated states in organic solution by means of FEG methodology via molecular dynamics simulation in order to systematically understand the geometrical information (orientation/ aggregation) on the isolated MeLi, MeLi crystal and MeLi in solution, and, at the same time, to reach a mutual understanding between the theory and the experiment.

[Reference]

Y. Ohta, A. Demura, T. Okamoto, H. Hitomi and M. Nagaoka, J. Phys. Chem. B, 110, 12640 (2006).

(Okamoto, Koyano, Ohta, Takenaka, Hitomi, Nakagawa)
